Vacuum Machine for Silicone Rubber
We can offer our customers for the vacumping machine as your requirement.
Tips of How to fix the Vacuum Machine
1 the Vacuum Machine contains two parts , one is the evacuated container and another is the engine
2 On the top of the Evacuate Container , please fix a switch on the left as below , before you do the Vacuum Pumping , you should turn of the switch , and after the Vacuum Pumping have been done , before you open the door of the Evacuated Container , you should turn on the Switch , to let some air into the Container , otherwise you cann’t open the door .

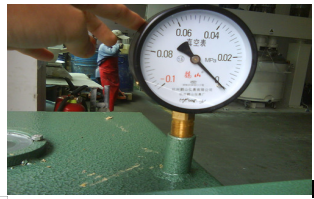

3. Fix the Watch on the right side on the top of the Evacuate Container , at first , the clock hand towards to 0 , if the clock hand is at the 0.1 , then the Vacuum pumping is beginning , you can see from the window of the door , after there is few bubbles , the Vacuum pumping have been done well , generally bout 3-5 mins .
4 , Fix the lap on the top of the Evacuate Container . you should Fix a light bulb in the lampshade first .
5 At the left side of the Evacuate Container as below

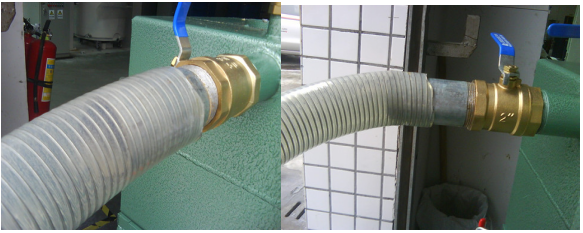

6. Then Fix the Vacuum Tube , if you can use some adhesive plaster to make the joint secured.
7.Open this cover on the engine as below .
8.then Fix as below
9. Then fix another side of the Vacuum Tube on the engine

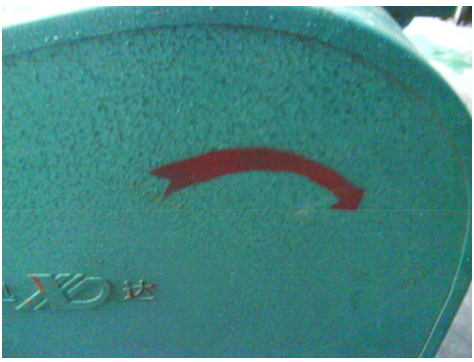

10 Please note that , the leather belt should be swirl in the direction as the arrow-head . when you fix the power of the engine , please note that .
11.If the Oil is below 1/3 of the container , you should note to add the oil . and you can see it from this window.
